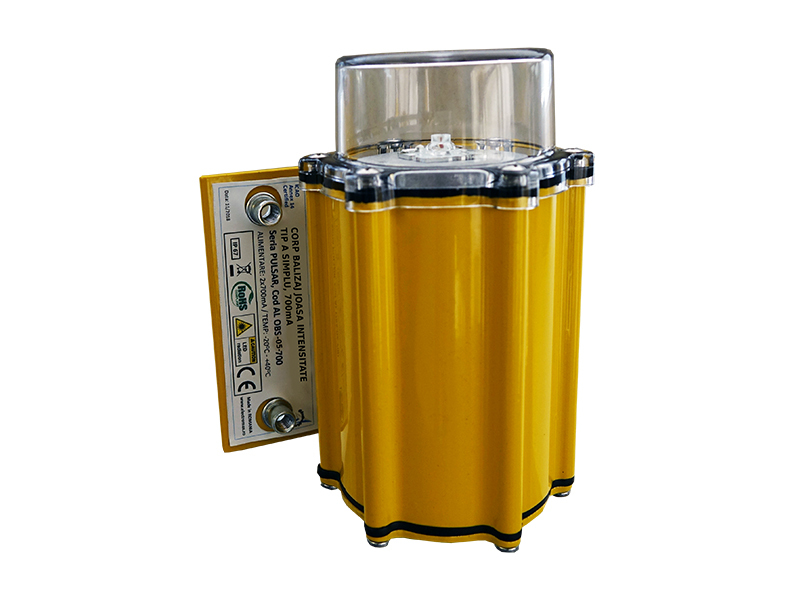

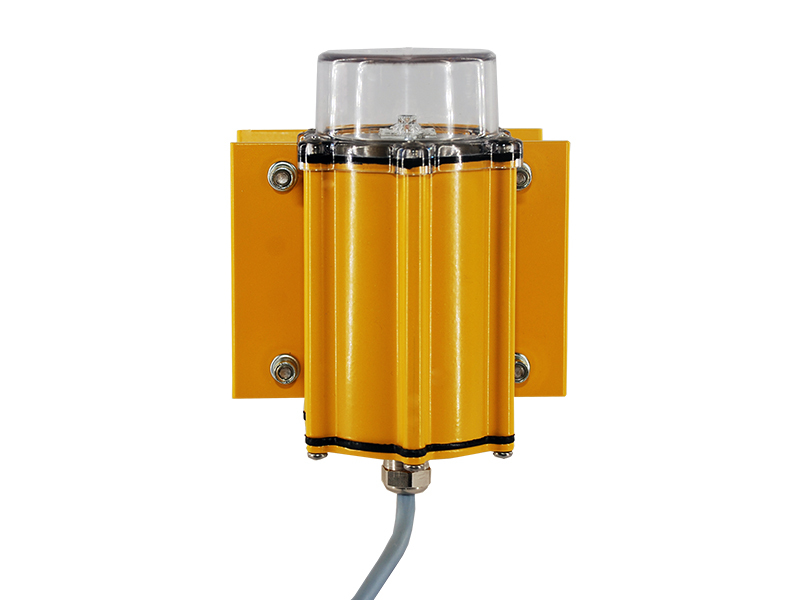

PULSAR-Type A single ICAO LED Obstruction Light Low intensity


Type A single ICAO obstruction light has a red LED with a horizontal dispersion of 360 degrees and offers a stable light, unaffected by voltage variations

  • CE-Mark
  • OSRAM
  • F-Mark
  • Outdoor
  • 230V 50Hz
  • 12-24V DC
  • 66
  • Class I
  • 0.9

Application areas

This product can be used successfully in various applications in different fields:

  • Obstruction lighting

Technical specifications

Casing materialAnodized aluminum
Light diffuserClear polycarbonate
Casing colorStandard: AVIATION YELLOW (RAL 1004)
Power supplyStandard: 110-230 V AC 12V, 24V, 48V DC
Light intensity> 10cd
Light colorRed

PULSAR-Type A single ICAO LED Obstruction Light

Datasheet download

Alternatively, you can now tap the following phone number to call from your device)

Description

  • Type A obstacle light has a red LED with a horizontal beam of 360 degrees and offers a stable light, unaffected by voltage variations.

  • It is used to mark aviation obstacles such as towers, buildings, antennas.

  • Designed and manufactured in Romania.

Photometric specifications

  • Light source: high intensity OSRAM LEDs

  • Light intensity: Type A simple: over 10 cd

  • The minimum luminance requirements for the low-intensity type A beacons is:

  • Between 2 ° and 10 ° the minimum intensity is 10cd according to ICAO Annex 14 Volume I

Technical specifications

  • The casing is made of powder coated aluminium.

  • The diffuser is made of clear polycarbonate.

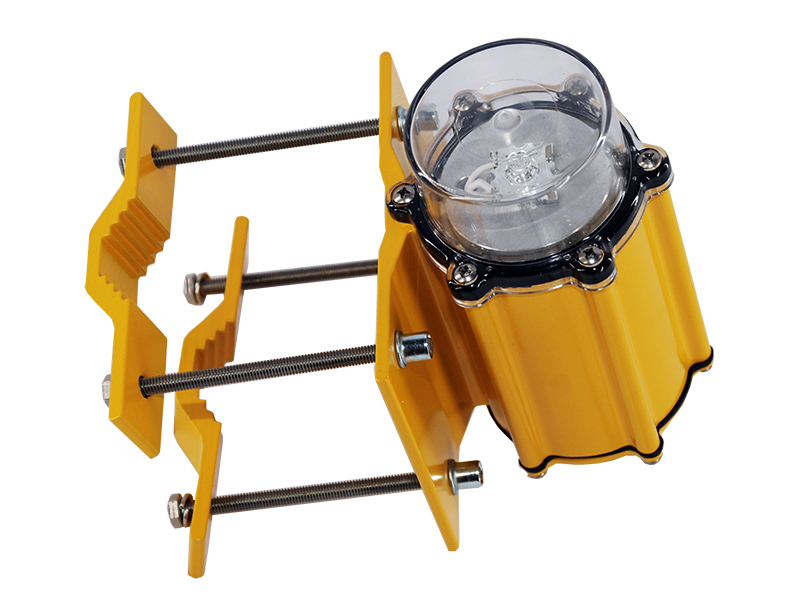

  • The light beacon is a attached to a pipe with a diameter of 32-65mm.

  • The light beacon can be equipped with a twilight switch, a monitoring system or a photo-voltaic panel.

Operating environment

  • Rated operating temperature from -20 °C up to +40 °C.

  • The ingress protection rating is IP 66.

  • The impact protection rating is IK 10.

Electrical specifications

  • Electrical safety class I

  • Power supply 110-230V AC, 50/60Hz

  • 12V DC,24V DC sau 48V DC

  • Power consumption 1,5 W

Dimension specifications

  • 70 x 140 mm

  • Weight 0,9kg
